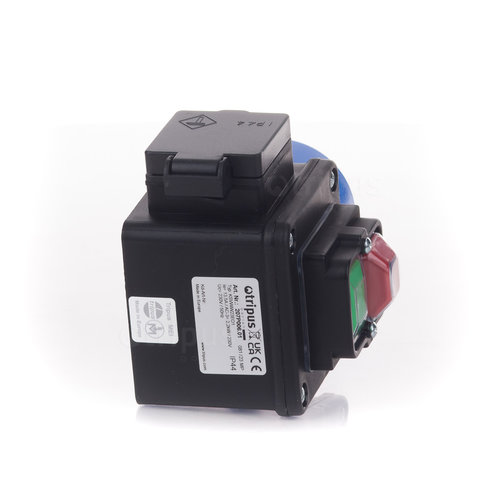

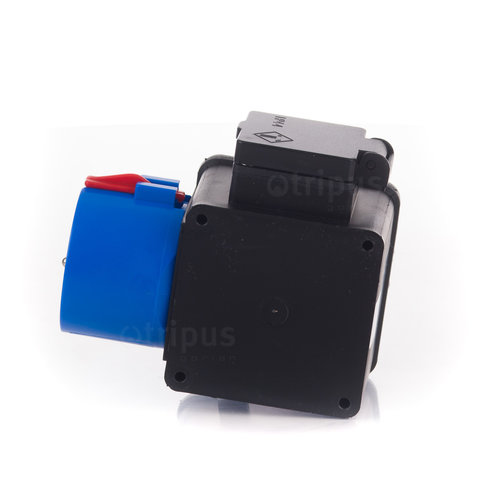

Datenblatt - 207P006.01 - CEE7/7-plug 16A
- Low voltage release
- Restart protection
- Socket
- Coupling locking (red)
- Push button cover transparent
- Switching function: 0 – 1
- Operating mechanism: Push buttons ON/OFF
Technical data
| Rated operational voltage Ue: | 230V / 50Hz |
| Conventional thermal current Ith | 16A |
| Rated breaking capacity AC-1: Rated breaking capacity AC-3: | 16A / 3,6kW / 230V / 1~ 13,5A / 2,2kW / 230V / 1~ |
| Main Switching contacts (main circuit): | Make-contact / 2-pole |
| Operating mechanism: | electrical ON / mechanical OFF, electrical OFF / tip-free mechanism |
| Rated actuating voltage Uc: | 230V / 50Hz |
| Make-and-break cycle: | 50E3 |
| Frequency of operation: | 300 I/h |
| Ambient temperature: | -5°C / +40°C |
Line inlet: | Plug blue 3–pole CEE7/7 2P+E / 16A / 250V / 50-60Hz |
Outlet: | 1 Schuko-socket black CEE7/3 2P+E / 16A / 250V / 50-60Hz |
| Protection class : | IP 44 |
| Housing: | PP / black |
| Type: | Built-on / closed / push buttons |
| Mounting: | 4 holes Ø 4,2mm – 68 x 68mm |
| Dimensions (LxWxH): | approx. 133 x 115 x 100mm |
| Weight: | ca. 421g |
