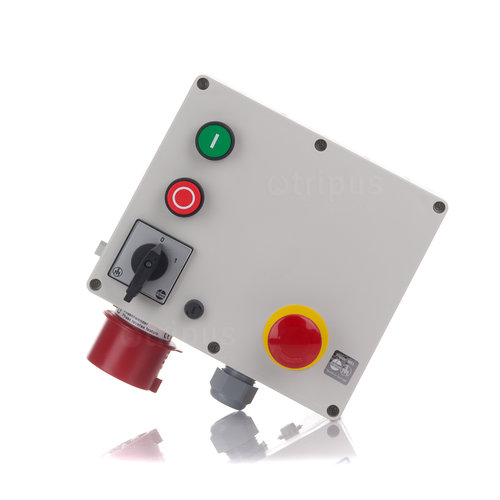

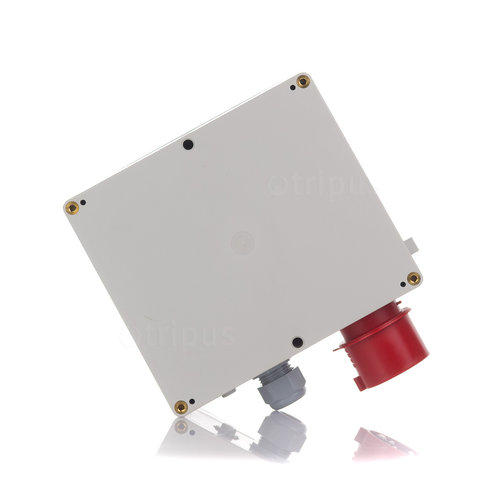

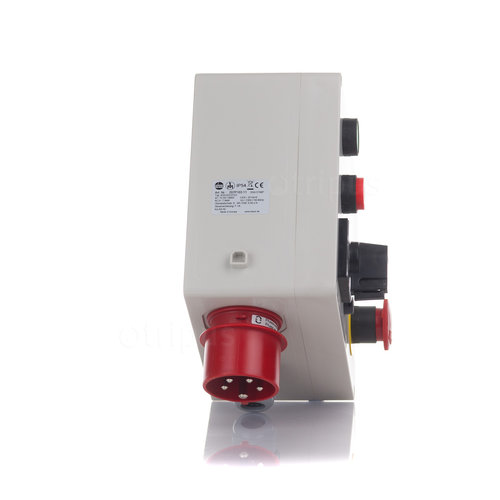

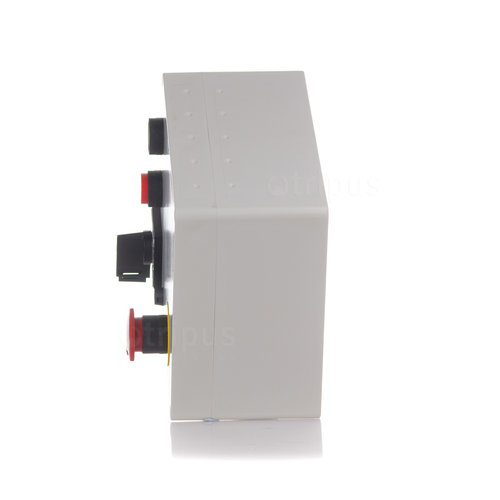

Motor starter – J – 400V – mounting-on version – automatic 7.5kW star-delta

- CEE-plug collar 16A with phase inverter
- Undervoltage release
- Overload protection
- Main switch
- Emergency stop mushroom button
- Control fuses
- Motor connection
- Thermal contact connection
- Limiter switch connection
- Terminal block
- 1 cable gland M25
- 1 blind plug M16
- Switching function: 0 - 1 | auto star-delta
- Actuation type: rotary handle 60° | push buttons ON/OFF

Technical data

Rated operational voltage Ue:	400V / 50-60Hz
Rated operational current Ie:	15.5A
Rated breaking capacity AC-3:	15.5A / 7.5kW / 400V / 3~
Contacts (main circuit):	Closing / 3-pole
Actuation:	electrically ON/OFF / free tripping
Rated actuation voltage Uc:	230V / 50-60Hz
Current diagram:	Star-delta / automatic
Switch-over delay: Switch-over pause:	ca. 1,5 - 30s / adjustable 100ms
Overload protection: Setting rane: Setting value:	thermal / 3-pole / manual or automatic reset 6 - 9A (equal to 10.3 - 15.5A motor nominal current) 0,58 x Motor nominal current
Emergency stop:	Stop-category 0
Control fuse:	F.1A
Switching cycles:	10E5
Switching frequency:	60/h
Ambient temperature:	0°C / +40°C
Network input:	CEE-plug collar red 5-pole / phase inverter CEE 3P+N+E / 6h / 16A / 415V / 50-60Hz
PE-connection: Motor connection: Thermal contact connection: Limiter switch connection:	2 screw terminals 6mm² r (PE / PE) 6 screw terminals 2 x 2.5mm² r (2 / 4 / 6 / U2 / V2 / W2) 2 screw terminals 6mm² r (T1 / T2) 2 screw terminals 6mm² r (S1 / S2)
Outgoing:	Cable gland M25 (for cables Ø 13 – 18mm) 1 drill hole Ø 16,5mm with strangle nipple M16 with blind screw fitting when not in use
Degree of protection:	IP 54
Front plate / handle:	silver / 0 - 1 (60°) / black, lockable
Enclosure:	ABS / grey
Version:	Mounting-on / closed / buttons, handle top
Fixation:	4 threaded bushings M6 - 198.7 x 170.2mm or 4 drill holes Ø 4.2mm – 180.3 x 170.2mm
Dimensions (LxWxH):	ca. 238 x 220 x 148mm (over all without cable)
Weight:	ca. 2315g
Conformity / Tests:	CE
